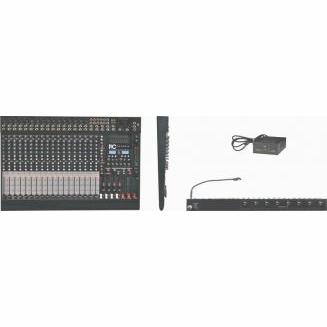

ITC-TS-16P-4 Channel Audio Mixer
Part no : ITC TS-16P-4
Descriptions
* SMT technology circuit design, powerful and complete function , sweet sound , clear treble, shock bass ;
* 8 (TS-16P-4) or 16 (TS-24P-4) or 24 (TS-32P-4) microphones and line inputs with returning effect;
* 8 stereo inputs; 4 stereo external effect signal inputs;
* Independent four group outputs, 2 auxiliary outputs, 2 effect outputs;
* Built in two groups of 21 kinds DSP effects, 9 stage equalization adjustable output channel;
* Microphone input interface with 48V phantom power supply, can directly supply to the phantom microphone ;
* Low noise external power adapter;
* LED DJ lamp.
Specifications
| Model | TS-16P-4 |
| Mono input channel | 8 channels |
| Stereo input channels | 4 groups (8 mono) |
| Mono insertion channel | 8 channels |
| Single channel microphone interface phantom power | +48V |
| Output channel | 3 main outputs; 4 output groups; 2 CH aux outputs; 2 CH CD/TAPE auxiliary outputs; 2 CH effect outputs ; 1 CH stereo headphone outputs |
| Frequency response | 20~20KHz ±0.5dB |
| Mono sound channel microphone to output maximum gain | 56dB±2dB |
| Mono sound channel line to the main output maximum gain | 36dB±2dB |
| Stereo sound channel line to the output maximum gain | B26dB±2d |
| Channel crosstalk | ≥90dB @ 1KHz |
| Signal to noise ratio | 83dB @ 1KHz 0dB |
| The main output channel maximum equilibrium output | 25dB±1.5dB |
| The main output \ marshalling the maximum unbalanced output | 19dB±1.5dB |
| Aux maximum unbalanced output | 19dB±1.5dB |
| CD/TAPE lost the maximum unbalanced output | 19dB±1.5dB |
| The effect of unbalanced output | 19dB±1.5dB |
| Headphone output | 12dB±1.5dB @ 1KHz 32Ω |
| Gain difference between channels | ≤2dB |
| Distortion degree | ≤0.02% @ 0dB 1KHz |
| Mono channel equalization | |
| High frequency, intermediate frequency, low frequency range | 12KHz, 110~8KHz , 80Hz |
| Frequency offset and gain frequency | Deviation is less than 8%, the biggest gain is ±15dB |
| Stereo channel equalization | |
| High frequency, high frequency, low frequency, low frequency range | 20KHz, 3KHz , 500Hz, 20Hz |
| Frequency offset and gain frequency | Deviation is less than 8%, the biggest gain is ±15dB |
| The main output 9 Bands Graphic Equalizer | |
| The center frequency | 63Hz,125Hz,250Hz,500Hz,1KHz,2KHz,4KHz,8KHz,16KHz |
| Frequency offset and gain | ±12dBdeviation2dB, Frequency offset ≤8% |
| Effector | 21 kinds of DSP effectors :HALL, ROOM, PLATE, AMBIENT, GATED, REVERS, VOICE, DEL&REV, ECHO 40, ECHO 50, DELAY, CHORUS, CHO&DEL, |
| CHO&REV, FLANGER, FLA&DEL, FLA&REV, TREMOLO, TRE&REV, WAH WAH, WAH&REV | |
| Channel clipping indicator | 3dB clipping level ahead instruction |
| 12 brands lever indicators | +9dB,+6dB,+3dB,0dB,-2dB,-4dB,-6dB,-9dB,-12dB,-16dB,-18dB,-21dB |
| Power supply and consumption | 220V/50Hz,<100W |
| Output power | |
| External power supply Dimension | 212mm x 143mm x 77mm |
| Product Dimension(WxDxH) | 525 x 512 x 65mm |
| Net Weight | 13kg |
| Shipping Dimension(WxDxH) | 674 x 591 x 227mm/0.0904m3 |
| Gross Weight | 15kg |
