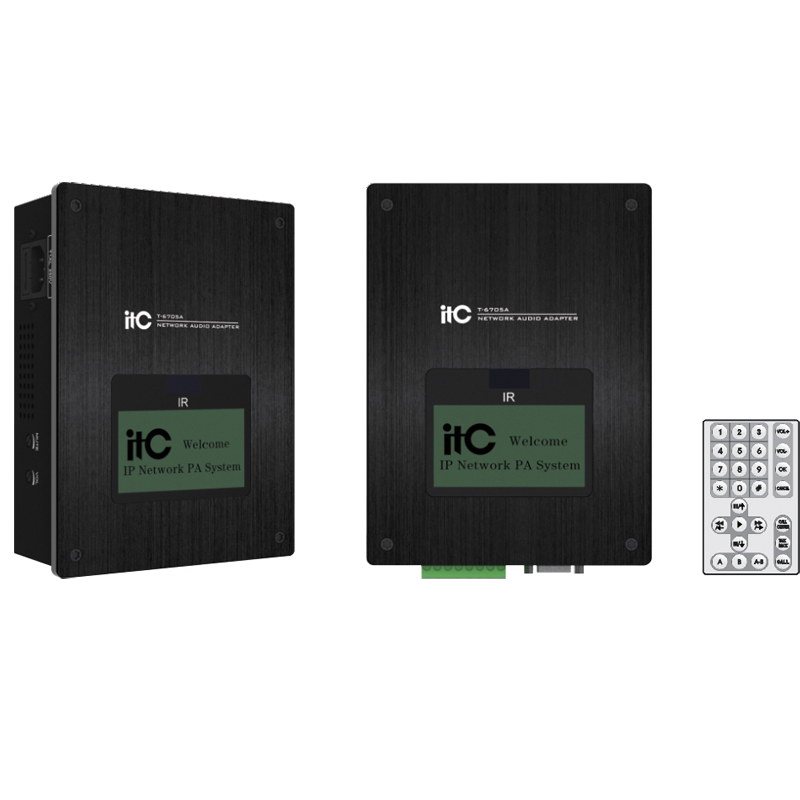

ITC T-6705A IP Network Adapter (Wall Mount Type with 2x10W Amplifier)
Part no : ITC T-6705A
Specifications
| Model | T-6705A |
| Network Input | Standard RJ45x1, 1 Input |
| Protocol Support | TCP/IP, UDP, IGMP (group broadcasting) |
| Transmit Speed | 10/100Mbps |
| Audio Format | 16 digit stereo CD tone |
| Frequency Output | 20Hz~16KHz |
| THD | ≤0.3% |
| S/N | ≥75dB |
| Speaker Output Impedance and Rated Power Output |
8Ω, 2x10W Industrial Standard Screw terminals |
| Aux Line Voltage Input | 400mV Industrial Standard Screw terminals |
| MIC Input S/N | 10mV |
| Working Temperature | 5℃ ~ 40℃ |
| Humidity | 10% ~ 90% |
| Power Consumption | ≤18W |
| Power Supply | ~110V/60Hz or ~230V/50Hz |
| Dimensions | 220x157x53mm |
| Weight | 1.62Kg |
